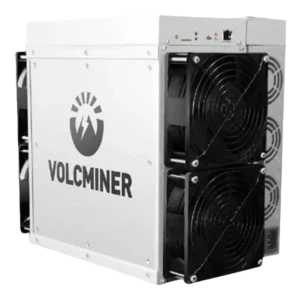

VolcMiner D1 Lite 14G
R130000
The VolcMiner D1 Lite 14G is a 14 GH/s Scrypt ASIC miner for Litecoin (LTC) and Dogecoin (DOGE) merged mining. VolcMiner rates it at 4,150W and about 0.296 J/MH. It is air-cooled for ventilated mining rooms and needs a dedicated 32A circuit on South Africa’s 230V supply, inside its 200–300V input range.
Product Description
Product Overview
The VolcMiner D1 Lite 14G is the entry model in VolcMiner’s D1 Scrypt ASIC series, delivering 14 GH/s for merged Litecoin (LTC) and Dogecoin (DOGE) mining. It shares the D1 chassis with the other D1 models in our Litecoin (LTC) and DOGE ASIC Miners range, including the VolcMiner D1 16G and the VolcMiner D1 18.5G, at a lower hashrate rating.
The “Lite” name refers to hashrate, not power. VolcMiner rates the D1 Lite at 14 GH/s and 4,150W on the wall, an efficiency of about 0.296 J/MH (296 J/GH). That makes it a lower entry point into the D1 platform, but it is less efficient than the full D1, which VolcMiner rates at 16 GH/s and 3,725W. Buyers who put electricity cost first should compare the two models before choosing.
For South African commercial Scrypt mining operations, the D1 Lite 14G suits buyers who want 14 GH/s per unit on a proven air-cooled platform and already have industrial power in place. At 4,150W it needs a dedicated 32A circuit, active extraction and a plan for load shedding, the same as any other large-format Scrypt miner.
Key Features
- 14 GH/s Scrypt Hashrate: Strong Scrypt output from the D1 chassis, comparable to the lower end of the Bitmain L9 series, for meaningful LTC and DOGE merged mining contribution.
- Dual LTC + DOGE Merged Mining: Litecoin and Dogecoin are earned from every submitted share at no extra power cost, and VolcMiner also lists other Scrypt coins such as Bellscoin (BEL) and Pepecoin (PEP).
- 4,150W Power Consumption (±5%): Industrial-grade power draw that needs a dedicated 32A circuit and commercial electrical infrastructure.
- Efficiency of about 0.296 J/MH: VolcMiner’s rating for the Lite. The full D1 is more efficient, so the Lite suits buyers who value the D1 platform at a lower hashrate tier over the lowest running cost.
- Air-Cooled Design: High-speed fans in a front-to-back airflow configuration for rack-deployed mining facilities.
- Standard Rack Form Factor: 295 × 217 × 335 mm and 15.6 kg, the same chassis as the full D1 and compatible with standard ASIC mining racks.
- Ethernet Management Interface: RJ45 Ethernet (10/100M) with web-based management for pool configuration and monitoring.
Technical Specifications
- Algorithm: Scrypt
- Supported Coins: Litecoin (LTC), Dogecoin (DOGE) and other Scrypt-based cryptocurrencies
- Hashrate: 14 GH/s (±5%)
- Power Consumption: 4,150W on the wall (±5%)
- Power Efficiency: ~0.296 J/MH (296 J/GH)
- Cooling: Air-cooled, high-speed fans
- Input Voltage: 200–300V AC, single-phase, 47–63 Hz
- Maximum Input Current: 20A
- Networking: 1× RJ45 Ethernet 10/100M
- Noise: 75 dBA
- Operating Temperature: −20°C to 45°C
- Dimensions: 295 × 217 × 335 mm (without packaging)
- Net Weight: 15.6 kg
- Power Supply: Confirm inclusion status at time of purchase
Power & Installation Notes
The VolcMiner D1 Lite 14G draws about 4,150W continuously, roughly 18A at 230V. South African installations must comply with SANS 10142 and be certified by a registered electrician. A dedicated 32A single-phase circuit is the minimum requirement, and three-phase distribution is worth considering for multi-unit deployments.
VolcMiner specifies a single-phase 200–300V input. South Africa’s 230V / 50Hz supply sits inside that range, so no transformer is required. Confirm the power supply arrangement at time of purchase.
Load shedding at 4,150W is beyond residential inverter systems. Commercial generator backup or planned downtime during outages is required, so factor expected load-shedding hours into your operating model.
Active ventilation is essential. At 4,150W, the D1 Lite produces substantial heat, so extraction must keep inlet air within VolcMiner’s 45°C operating limit, and cooler intake air helps it hold its rated hashrate. At 75 dBA, it belongs in a dedicated mining room.
Electricity Cost Context (South Africa)
At Eskom’s approximate residential reference tariff of R2.80/kWh, the estimated monthly electricity cost for the VolcMiner D1 Lite 14G is:
(4,150 ÷ 1,000) × 24 × 30 × 2.80 = R8,366.40 per month
This is an operating cost estimate only, not a profitability projection. For comparison, the D1 16G at VolcMiner’s rated 3,725W works out to about R7,509.60 per month for 2 GH/s more hashrate, so electricity-sensitive operators should weigh both models. Actual tariffs vary by municipality and supply type.
Ideal Use Cases
- Entry into the D1 platform: Operators standardising on VolcMiner hardware can start with the D1 Lite and add full D1 units later in the same chassis format and racking.
- Mid-scale commercial LTC/DOGE operations: Professional Scrypt operations with industrial power that want 14 GH/s per unit from an established air-cooled design.
- Mixed D1 fleets: The D1 Lite fits alongside the VolcMiner D1 15.15G and other D1 models in the same racks and on the same management tools.
- Fleet diversification from SHA-256: Operators running Bitcoin (BTC) ASIC Miners can add LTC/DOGE Scrypt exposure through D1 Lite units.
Frequently Asked Questions
Does the VolcMiner D1 Lite 14G work on South African power?
Yes. South Africa’s 230V / 50Hz supply is within VolcMiner’s 200–300V single-phase input range. A dedicated 32A circuit certified by a registered electrician is required.
Should I choose the D1 Lite or the D1 16G?
VolcMiner rates the D1 Lite at 14 GH/s and 4,150W, and the full D1 at 16 GH/s and 3,725W. The D1 16G therefore gives more hashrate for less power, at about 0.23 J/MH against 0.296 J/MH. The Lite suits buyers who want a lower hashrate tier on the D1 platform.
What if I need a lower power draw per unit?
The Bitmain Antminer L7 runs at about 3,258W for up to 9.05 GH/s, which suits sites that cannot supply more than about 3.3 kW per miner.
Which pool should I use?
AntPool, ViaBTC, F2Pool and Litecoinpool.org all support LTC+DOGE merged mining. Configure the pool stratum URL in the D1 Lite’s web interface and enable merged DOGE mining in your pool account.
Can the D1 Lite 14G handle load shedding?
Not on standard residential systems. At 4,150W, plan for downtime during load shedding or use commercial generator backup, and factor expected outage hours into your operational model.
Is a PSU included?
Confirm PSU inclusion at time of purchase.
What’s Included
- 1× VolcMiner D1 Lite 14G mining unit
- Power supply (confirm inclusion at time of purchase)
- Power cables
- Quick-start documentation
